AFERIY Solar Panel Extension Cable 5M
AFERIY Solar Panel Extension Cable 5M
Couldn't load pickup availability
AFERIY Solar Panel Extension Cable 5M
- 5m 12AWG solar extension cable.

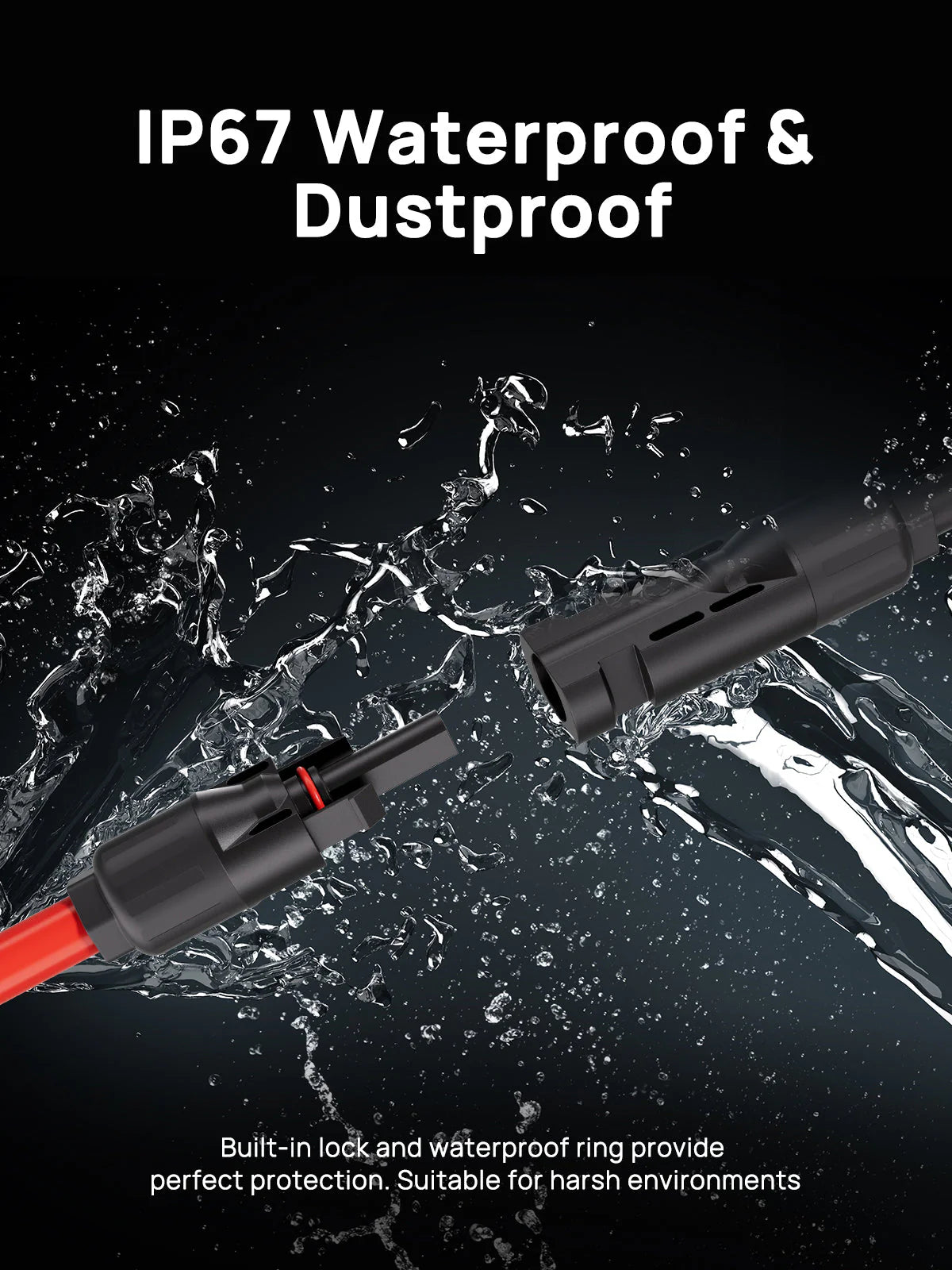

- Moisture, High/Low Temperature Resistance, UV and corrosion resistance, and IP67 Waterproof.
- High Strength, Abrasion Resistance
- Designed for outdoor solar panel charging use.

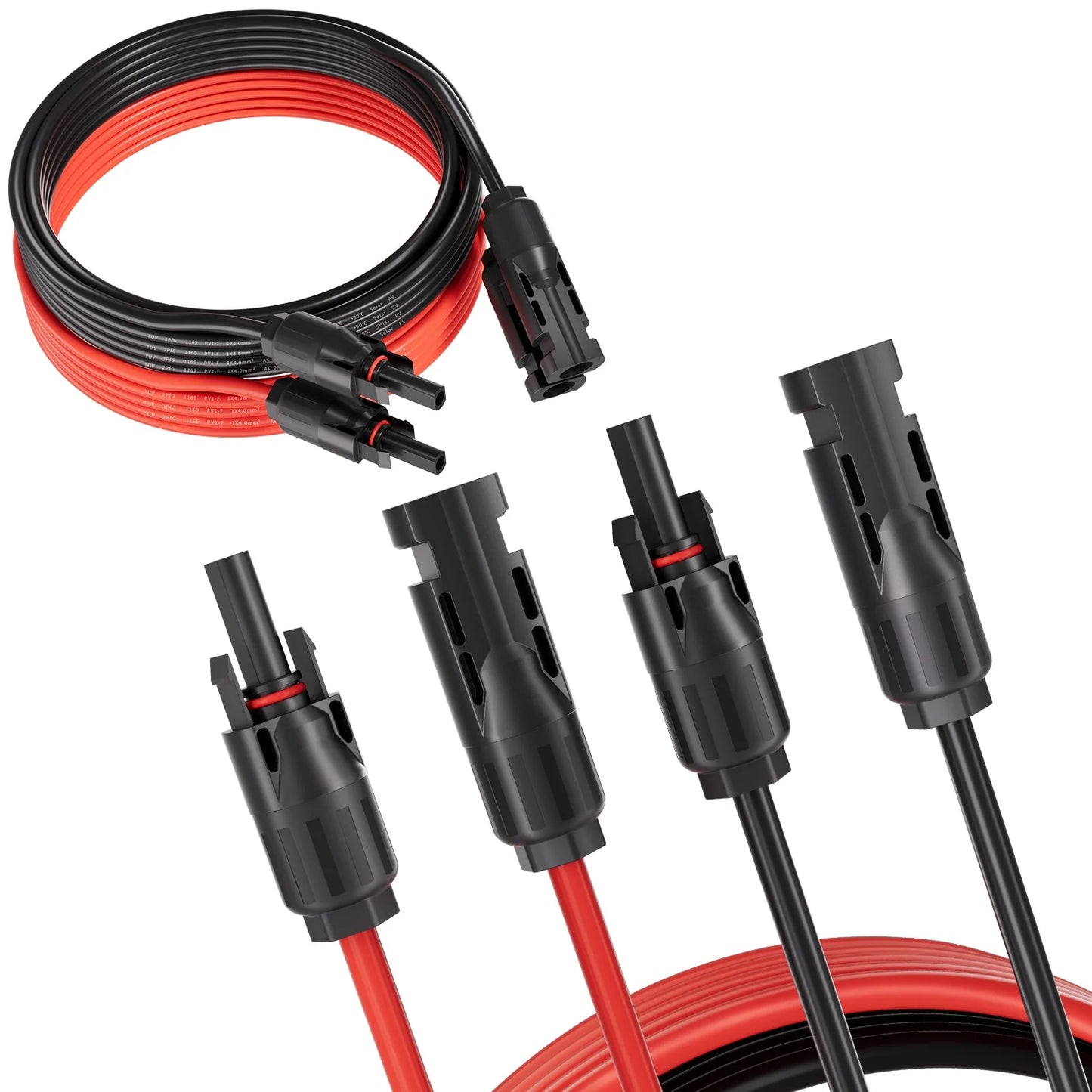

- Hard plastic connectors at each end, female and male connectors.
- Easy to lock and open.
- Shipping: Estimated delivery time is 10 business days;
- SKU: EC-5M
Provide Greater Flexibility to Your Solar System

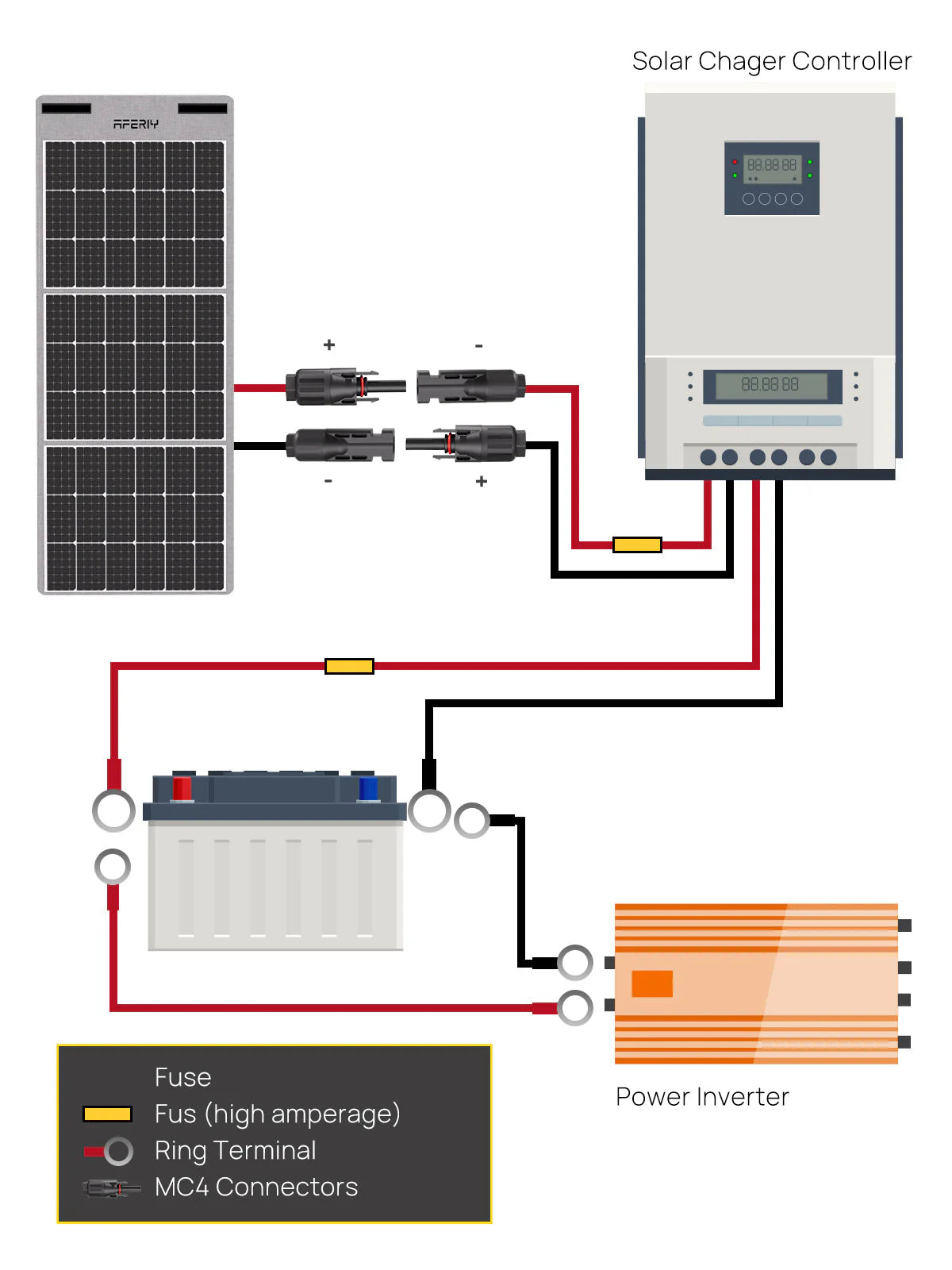

The solar panel extension cable with MC4 connector can extend the distance between your solar panels and power station, providing greater flexibility in panel placement, such as house roofs, recreation vehicles, caravans, and yachts.
Easy to Install
Our solar panel extension cables come with female and male connectors and can be used without the need to install the cables and plug yourself.
Quality Solar Panel Extension Cable

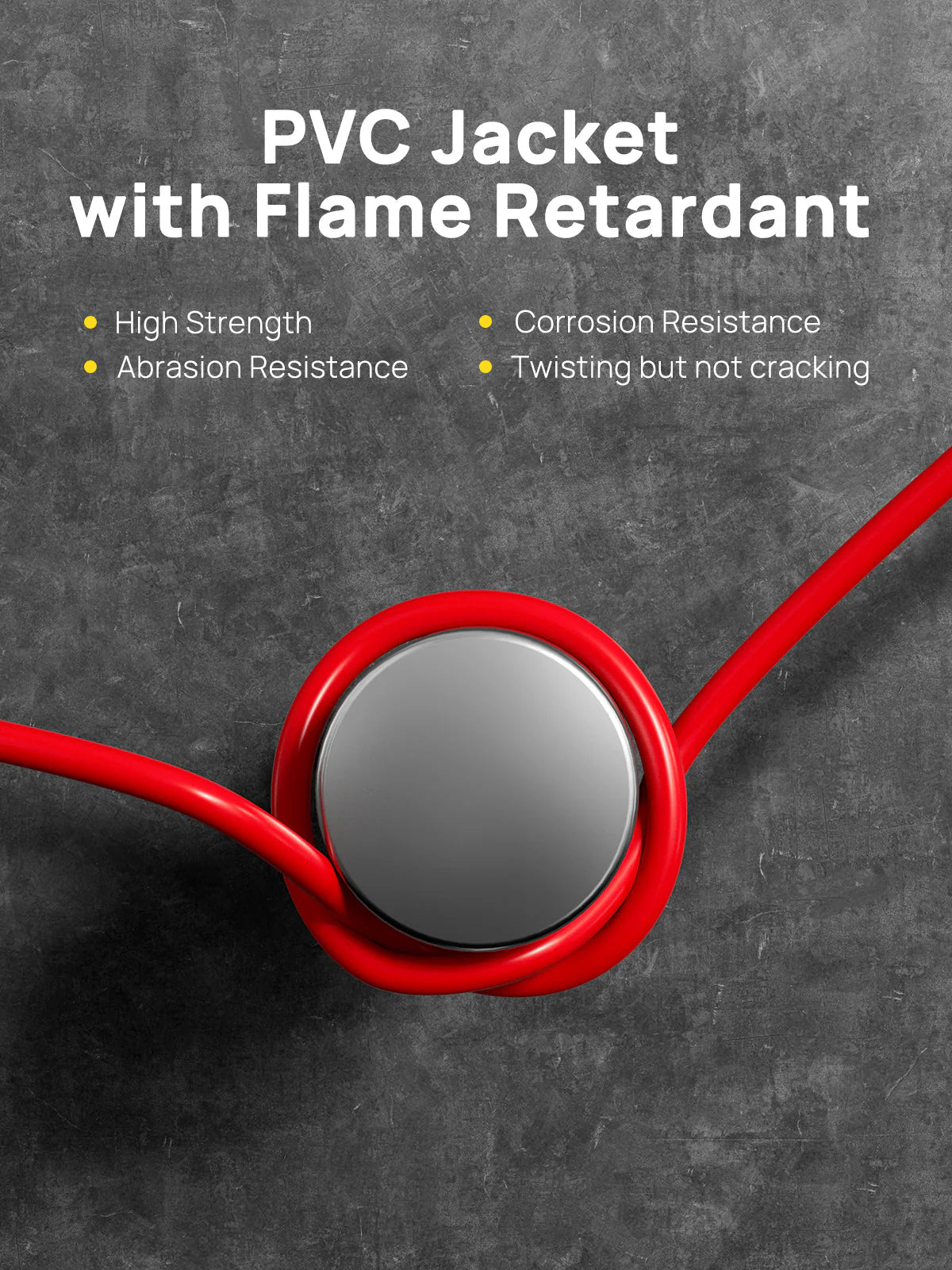

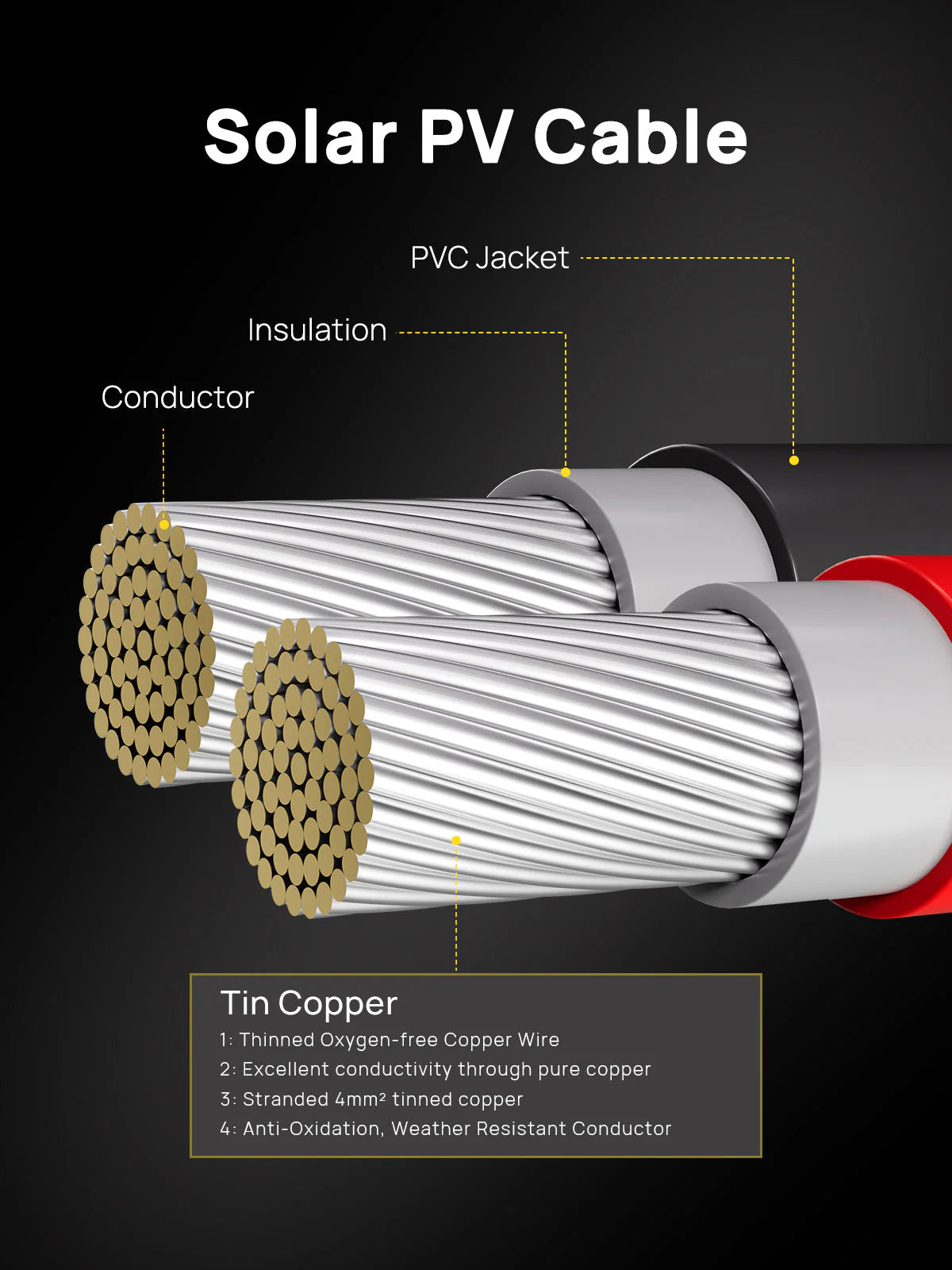

The solar panel extension cable is made of tinned conductive copper material to ensure good electrical conductivity and the solar connector shell is made of PP insulating material with excellent anti-ageing and UV resistance.

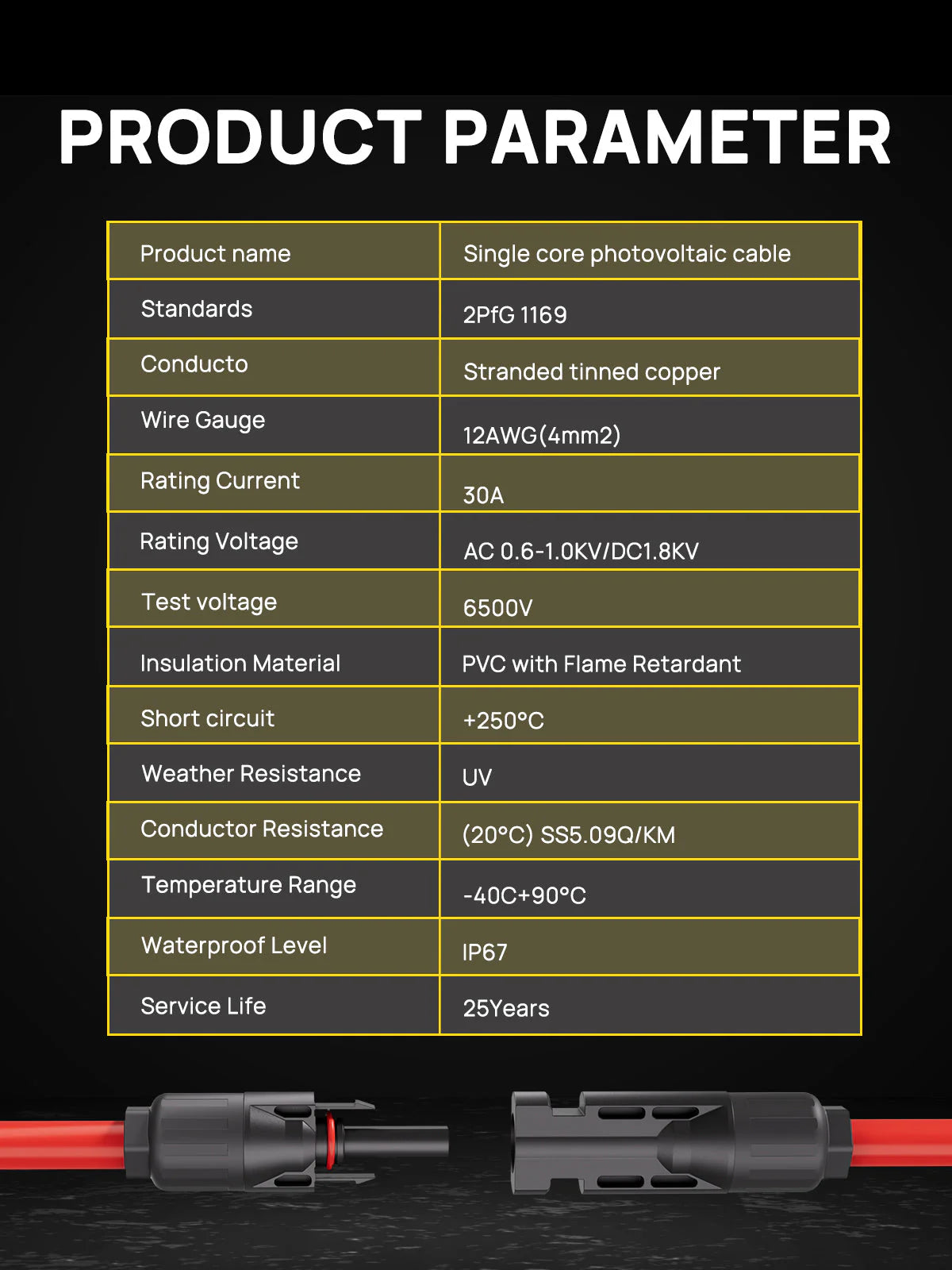

Product Parameter
Product Name | Single Core Photovoltaic Cable |
Standards | 2PfG 1169 |
Conductor | Stranded Tinned Copper |
Wire Gauge | 12AWG(4mm²) |
Rating Current | 30A |
Rating Voltage | AC 0.6-1.0KV/DC1.8KV |
Test Voltage | 6500V |
Insulation Material | PVC with Flame Retardant |
Short Circuit | +250°C |
Weather Resistance | UV |
Conductor Resistance | (20°℃) SS5.09Q/KM |
Temperature Range | -40C+90°C |
Waterproof Level | IP67 |
Service Life | 25 Years |
