High Energy Density: Volume only 1/3 of comparable capacity batteries to optimize space in RVs.
Lightweight and Portable: Designed for easy transport and stacking, optimizing space efficiency.

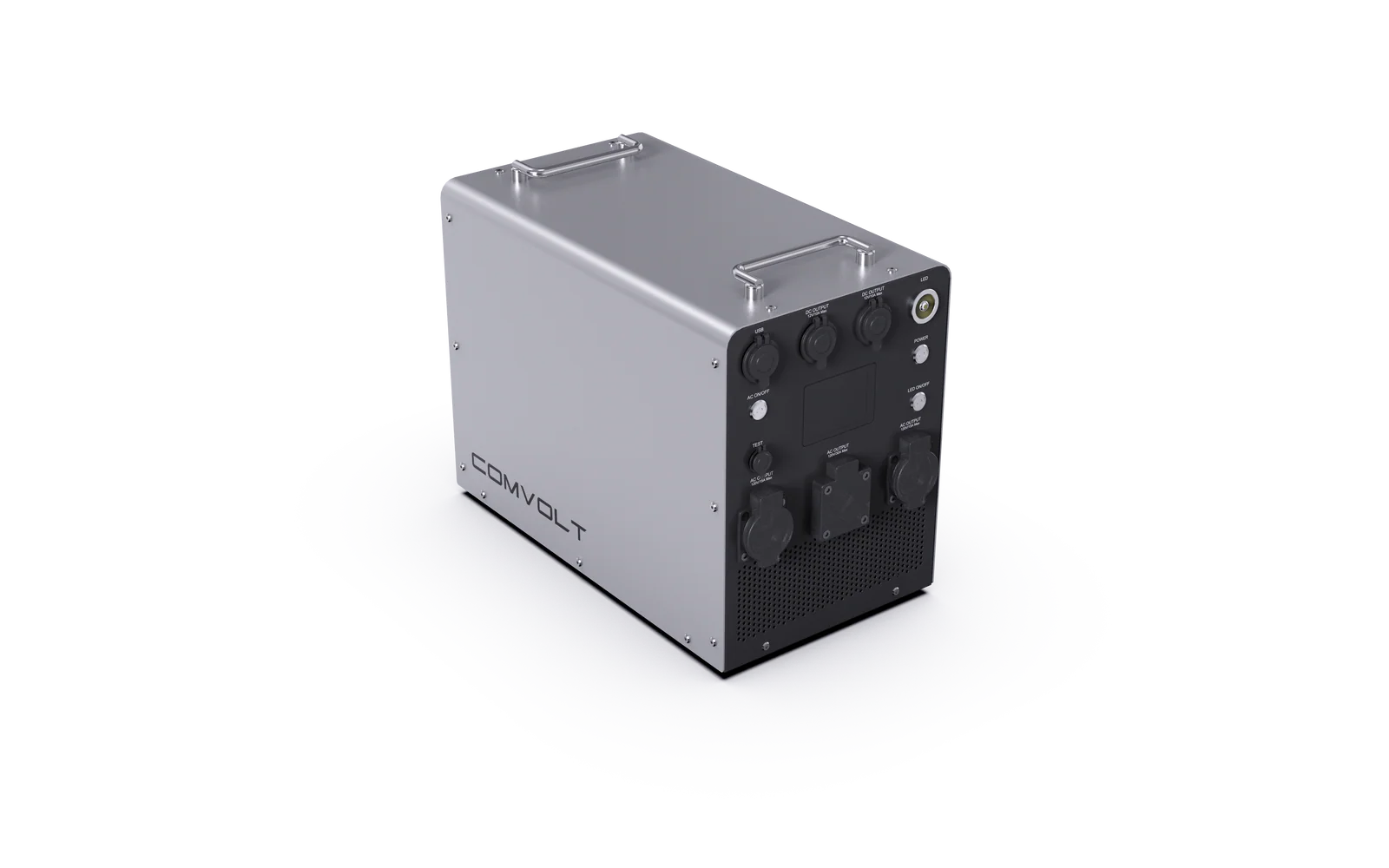

High-Strength Aluminum Alloy Shell: Guarantees battery safety, even under extreme conditions.
Integrated Power System: 1800-watt inverter and 400-watt solar controller for integrated RV power system.

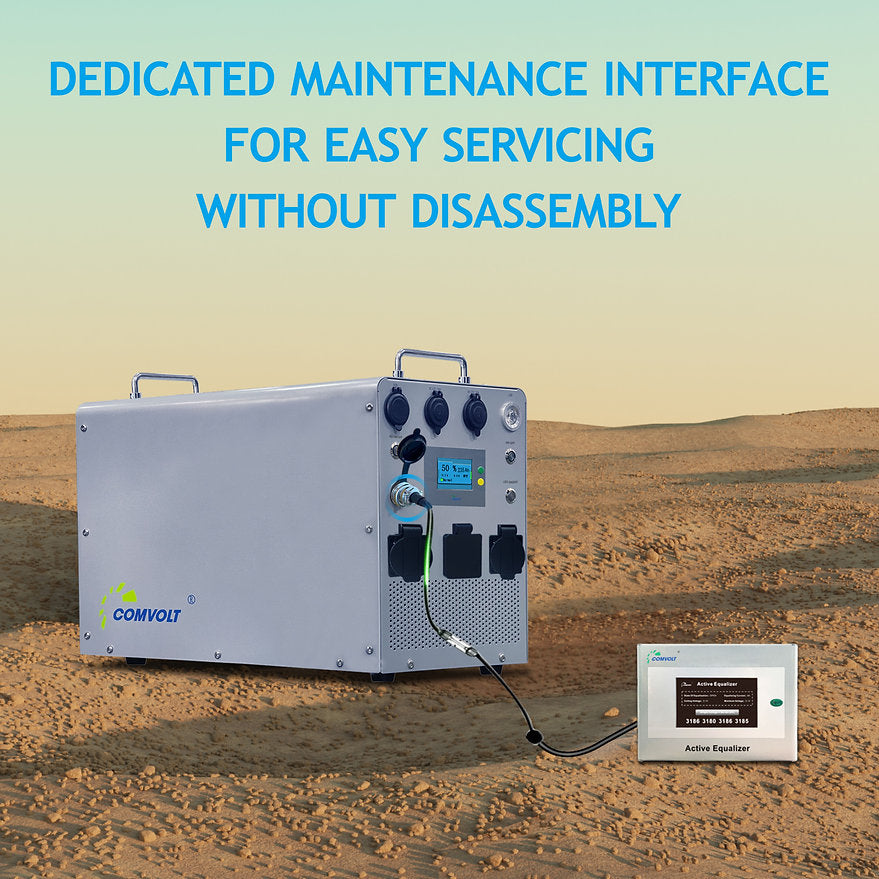

Simplified Installation and Maintenance: Streamlined circuitry for easy use and maintenance.
Zero-Loss 12.8V Output: 12.8V battery system for full rated capacity usage with negligible energy loss.

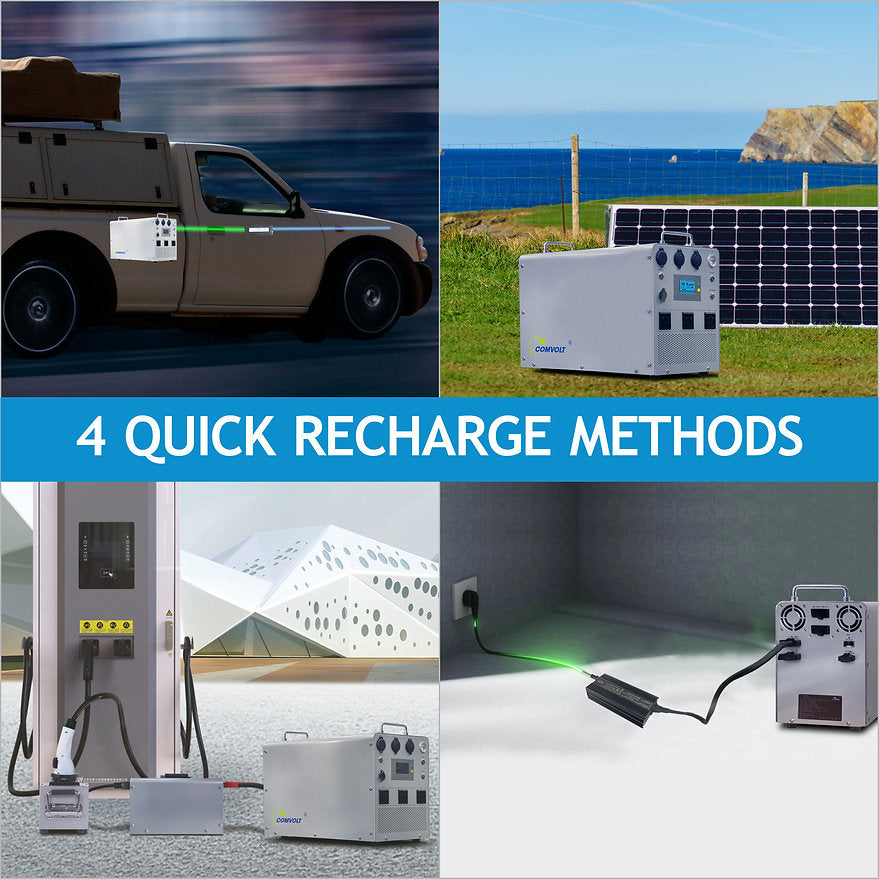

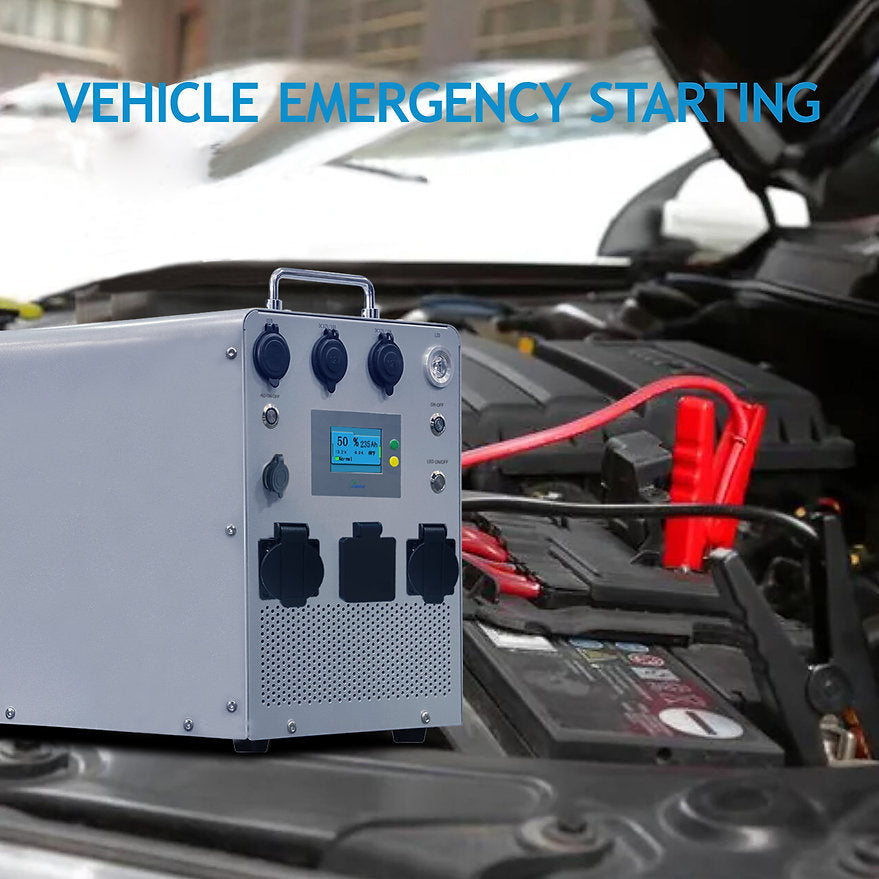

Rapid Recharge: Fast battery recharging via a 12V vehicle alternator.
3000-watt inverter and 400-watt solar controller

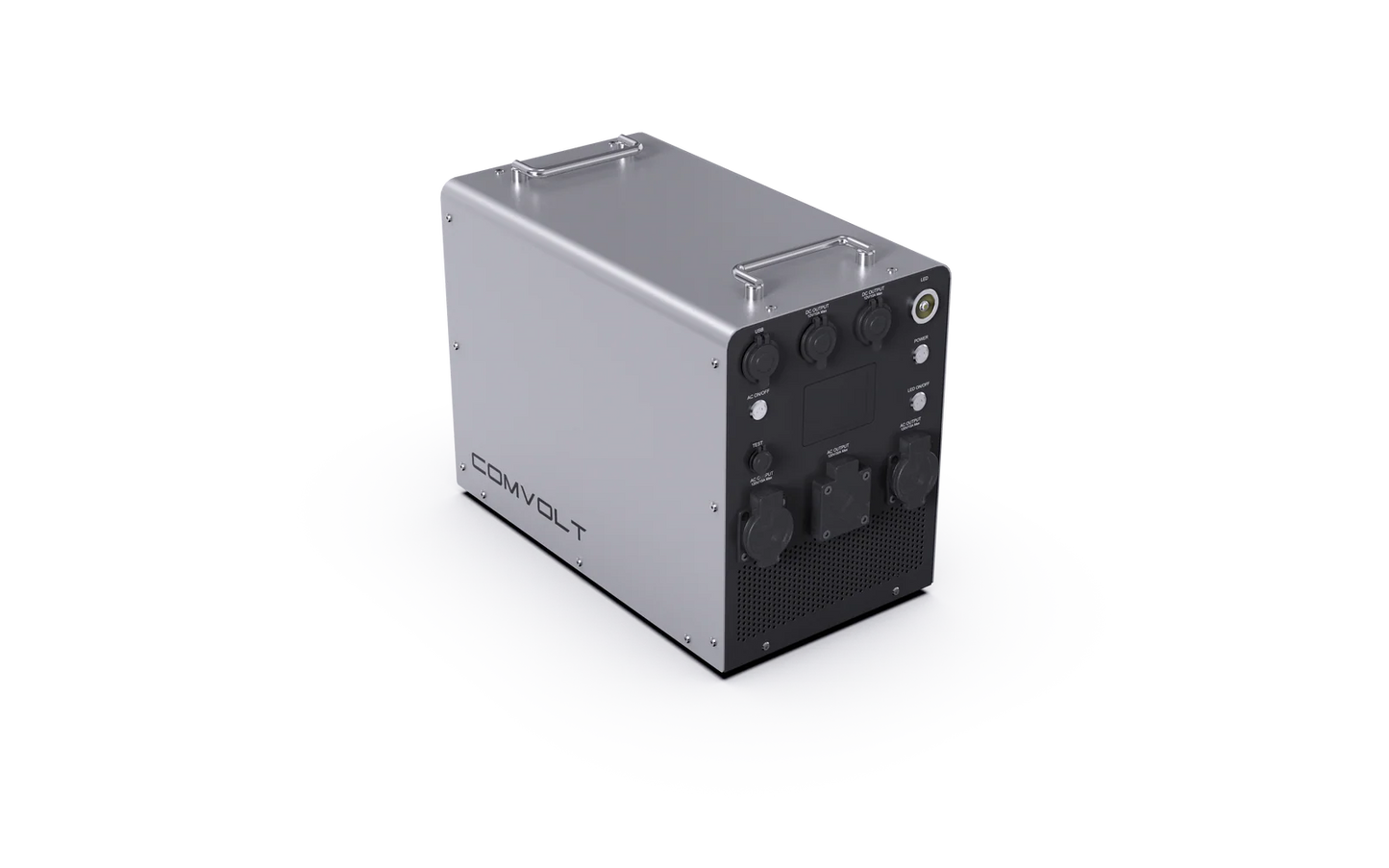

Capacity: 470 Ah (6.016 kWh)
Nominal Output 3000W
Sustained Output 2800W
Peak Output 6000W
Size: Length 17.1in x Width 9.7in x Height 13.6in
Weight: 112.4lbs

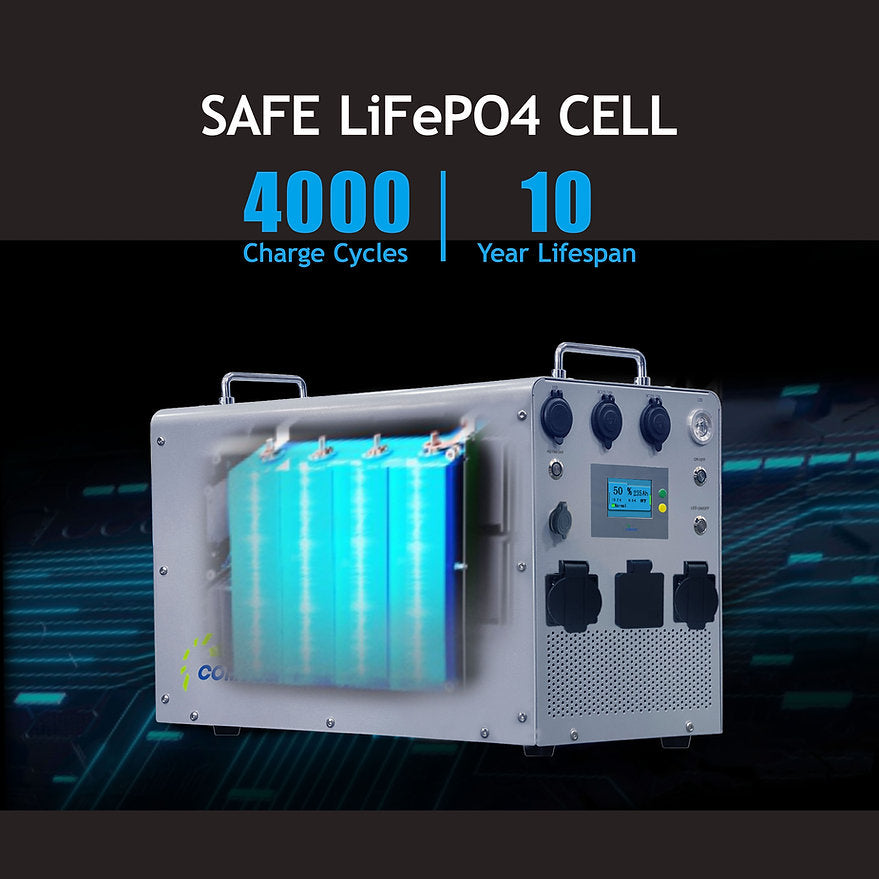

| Battery type |
LifePO4 |
| Nominal Voltage |
12.8V |
| Voltage range |
11.5-14.2V |
| Nominal Capacity |
2944Wh |

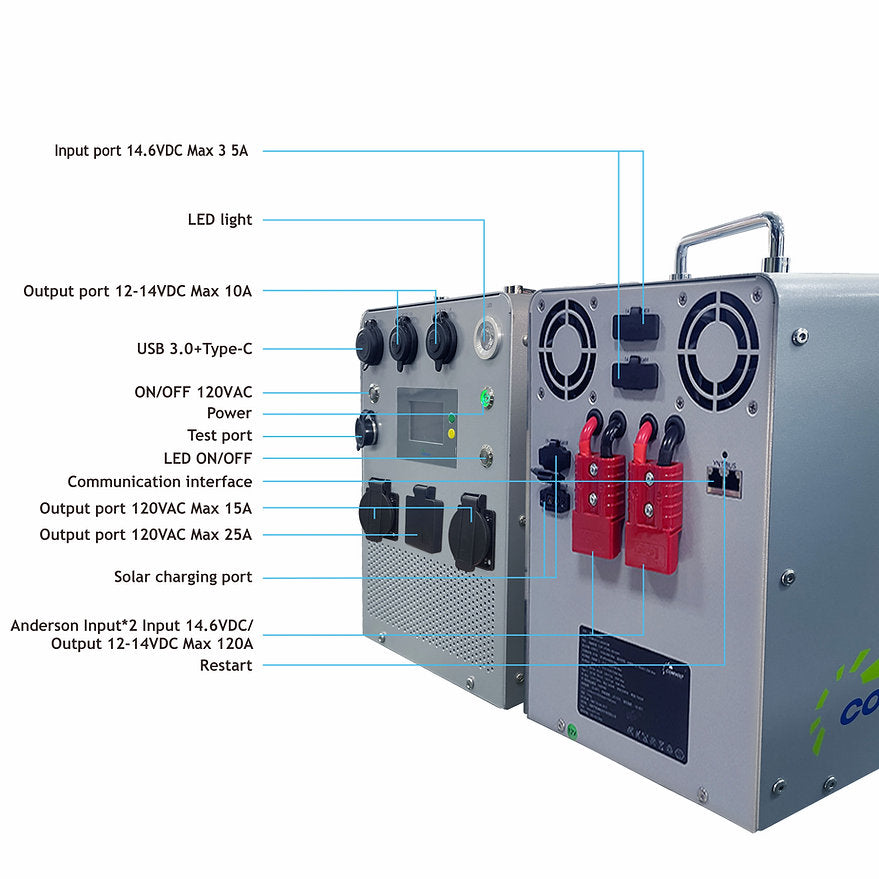

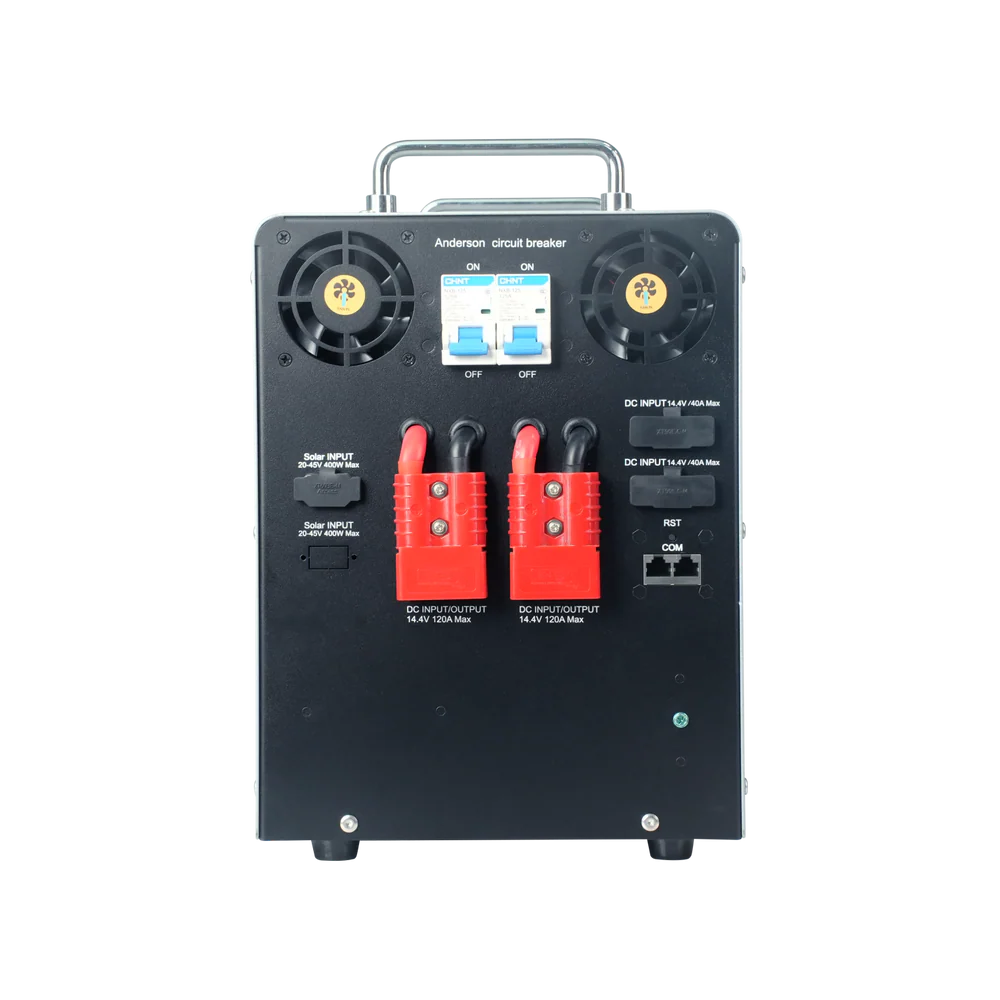

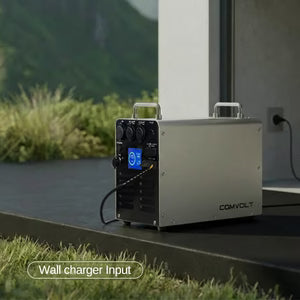

| DC Charging |
XT90*2 Single 14.6V/40A Max |
120A Anderson 14.6V/120A Max |
| Solar charging |
XT60 20-45V/400W Max |

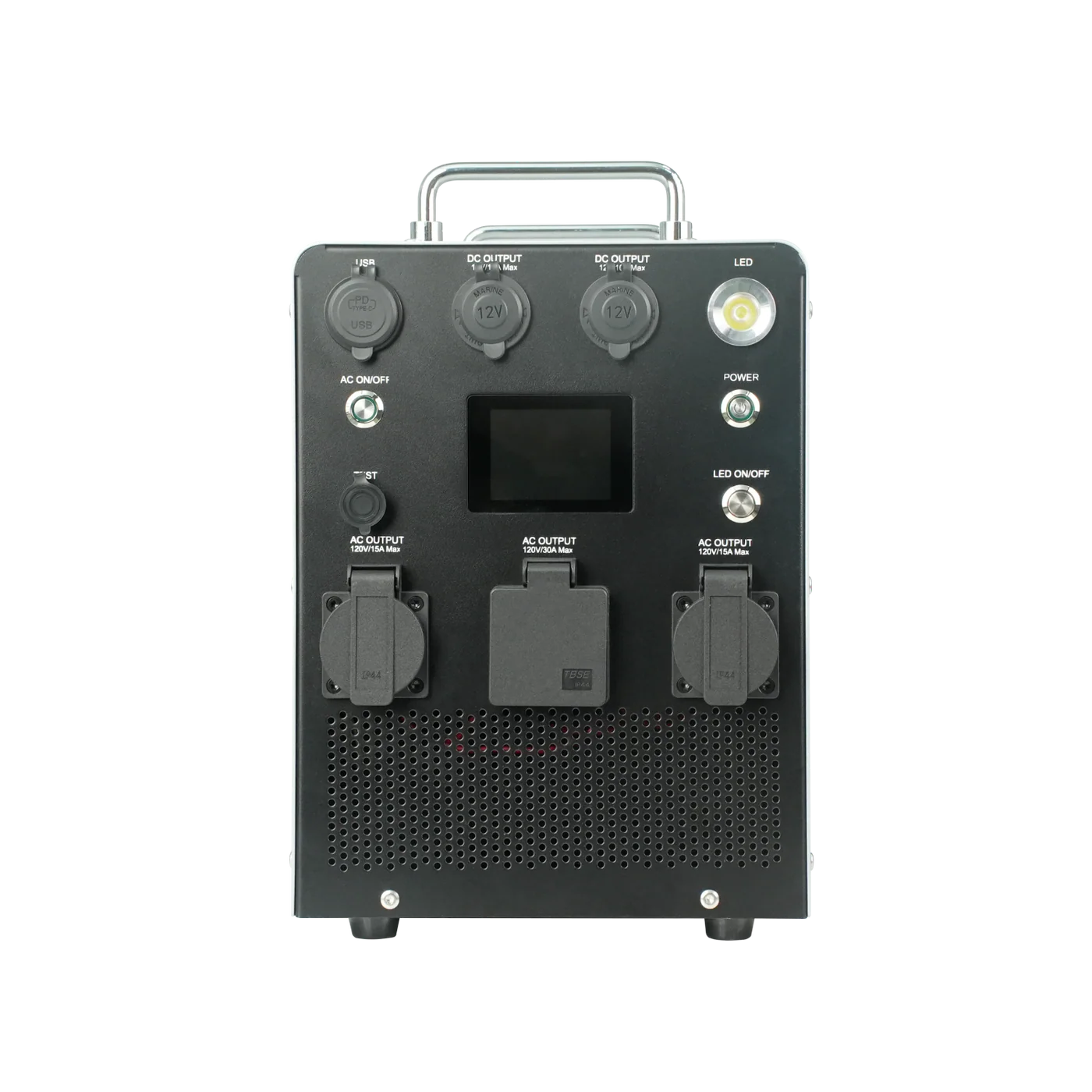

| DC Discharging |
CIG Outlet*2 Single 11.5-14.2V/10A Max |
120A Anderson 11.5-14.2V/120A Max |
USB-A 5V/3A 9V/2A 12V/1.5A 18W Max |
USB-C 5V/3A 9V/2A 12V/1.5A 18W Max |
| AC Discharging |
AC Nominal Output Voltage 120V |
AC Output Wave Pure sine wave |
AC Output Frequency 60Hz |
AC Nominal output Power 1800W |
AC sustained output Power 1500W |
AC peak output power 3600W |
| LED Lighting power |
5W |
| Low temperature charging self-heating |
Yes |
| Charging Temperature range |
-13~131℉ |
| Operation Temperature range |
-13~149℉ |
| Storage Temperature range |
14~95℉ |
| Dimensions |
L15.27in*7.40 in*11.02 in |
| Weight |
112.4 lb |
Warranty Period: The product is covered under warranty for a period of 5 years from the date of purchase and covers defects in materials and workmanship. It may not cover issues arising from normal wear and tear, accidental damage, misuse, or unauthorized repairs.
